Tools
KSM can support you with all your tooling needs from basic preparation and termination to professional testing and hydralic crimping.
As well as the range below we can supply wire strippers, cable cutters, cable testers and other associated wire processing tooling.
| KSM Part Number | Description | |
|---|---|---|

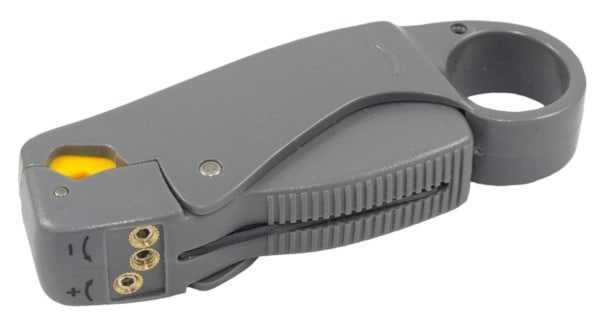

| H01-12001 | 3 Blade Coax Stripper (RG59/RG6) | |
| H01-12002 | 3 Blade Coax Stripper (RG8/RG213/L400) | |
| H01-12003 | 2 Blade Coax Stripper (RG174/RG179/RG316) | |
| H01-12004 | 3 Blade Coax Stripper (RG58/RG59) | |
| H01-12009 | 3 Blade Universal Coax Stripper (3.5mm-5.0mm) | |
| H01-23000 | Stripper for 3-9mm Round Sheath & Flat Telephone |
| KSM Part Number | Description | |
|---|---|---|

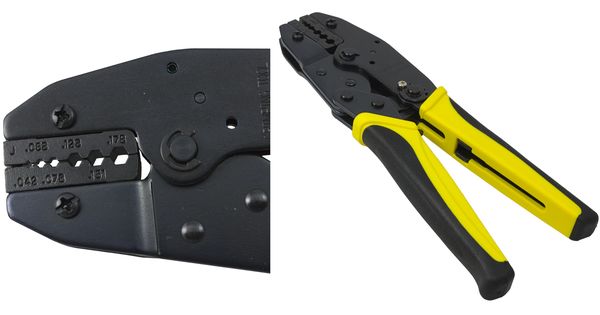

| H02-11000 | L100, Mini RG59, RG174, RG179, RG316 | |
| H02-11002 | L195, RG58, RG59, RG62, RG174, RG179 | |

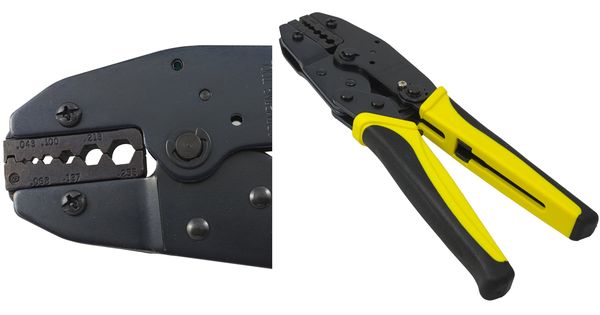

| H02-11003 | L195, RG58, RG59, RG62, RG174, RG179, RG316 | |
| H02-11004 | L400, RG8, RG11, RG213 | |
| H02-11005 | RG174, RG178, RG179, RG316 | |
| H02-11009 | L600 | |
| H02-11011 | F Type: RG6, RG59, CT100, CT125 | |
| H02-12007 | F Type: RG6, RG11, CT100, CT125, CT165 (Non-ratchet) |
| KSM Part Number | Description | |
|---|---|---|
| H02-21009 | RJ11, RJ12, RJ22, RJ45 | |

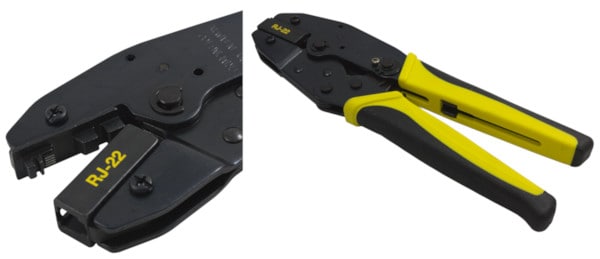

| H02-21010 | RJ22 (Front Loading) | |

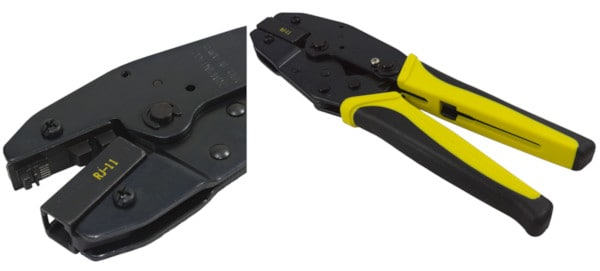

| H02-21011 | RJ11, RJ12 (Front Loading | |

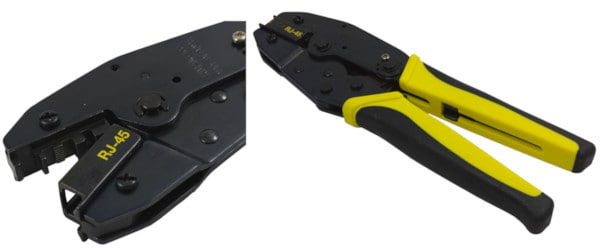

| H02-21012 | RJ45 (Front Loading) | |
| H02-22004 | RJ11, RJ12, BT431A, BT631A (Non-ratchet) |
| KSM Part Number | Description | |
|---|---|---|

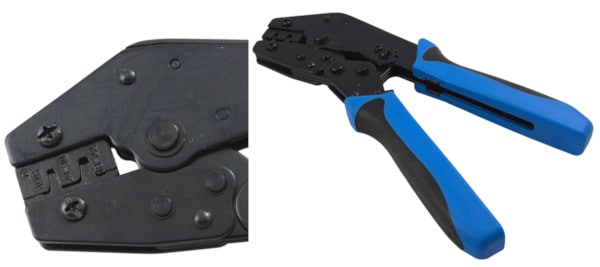

| H02-31000 | Pin & Contact Crimper for 18-30 AWG | |
| H06-30000 | Insertion/Extraction for Crimp Pin & Contact |
| KSM Part Number | Description | |
|---|---|---|
| H05-01001 | 110 Impact Punchdown Tool | |
| H05-01002 | A Krone style 2A Wire Inserter |
| KSM Part Number | Description | |
|---|---|---|
| H02-41000 | 0.5mm²-6.0mm² Insulated Terminal (Red, Blue & Yellow) | |
| H02-41001 | 0.5mm²-6.0mm² Uninsulated Terminal | |

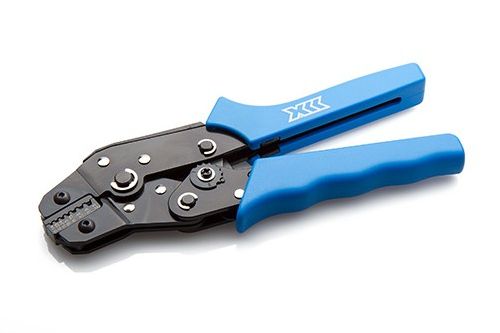

| H02-41002 | 0.14mm²-2.5mm² Cord End Ferrule (Bootlace) |
H01-12001
H01-12002
H01-12003

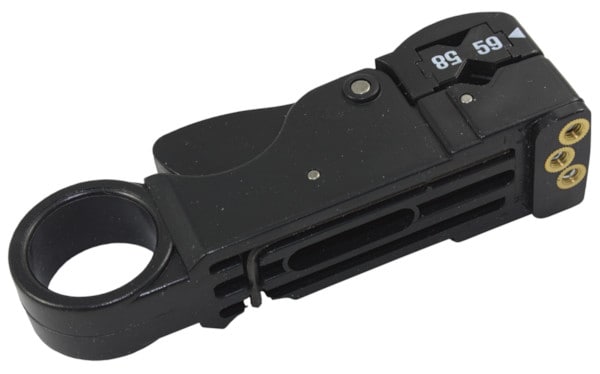

H01-12004

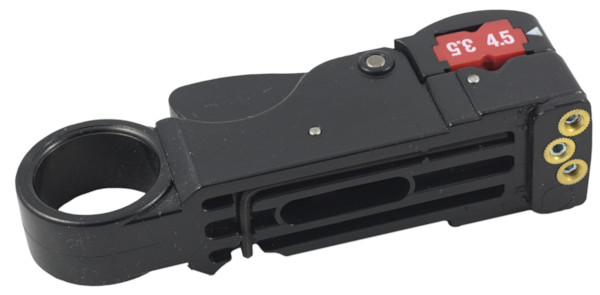

H01-12009
H01-23000
H02-11000
Die Size
- 1.07mm (0.042”)
- 1.72mm (0.068”)
- 1.98mm (0.078”)
- 3.25mm (0.128”)
- 3.84mm (0.151”)
- 4.52mm (0.178”)

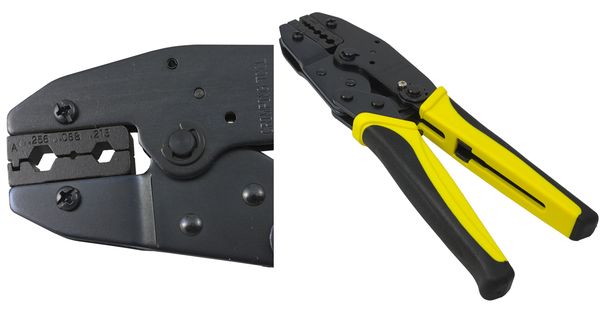

H02-11002
Die Size
- 6.50mm (0.256”)
- 1.72mm (0.068”)
- 5.41mm (0.213”)
H02-11003
Die Size
- 1.09mm (0.043”)
- 1.72mm (0.068”)
- 2.54mm (0.100”)
- 3.48mm (0.137”)
- 5.41mm (0.213”)
- 6.48mm (0.255”)

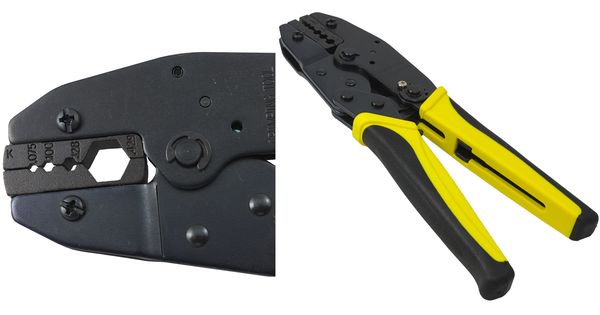

H02-11004
Die Size
- 2.54mm (0.100”)
- 3.25mm (0.128”)
- 10.90mm (0.429”)

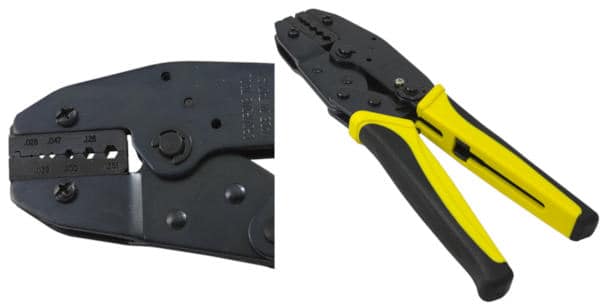

H02-11005
Die Size
- 0.71mm (0.28”)
- 1.00mm (0.39”)
- 1.20mm (0.47”)
- 2.54mm (0.100”)
- 3.25mm (0.128”)
- 3.84mm (0.151”)
H02-11009
Die Size
- 15.50mm (0.610”)

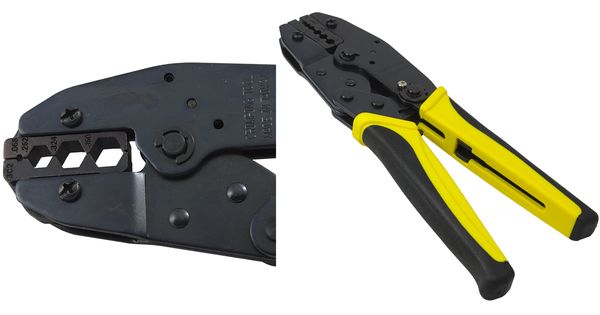

H02-11011
Die Size
- 6.48mm (0.255”)
- 8.13mm (0.320”)
- 8.90mm (0.350”)

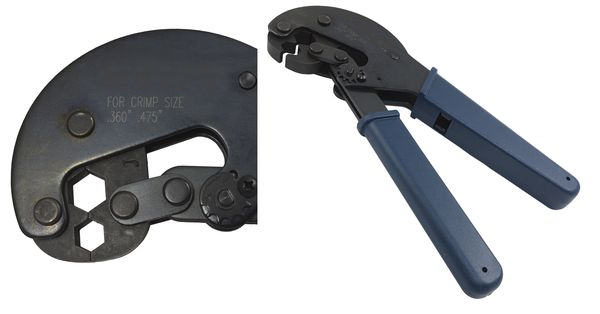

H02-12007
Die Size
- 9.14mm (0.360”)
- 12.06mm (0.475”)

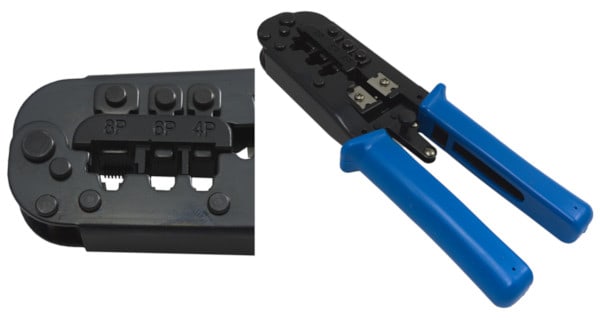

H02-21009
Connector Types
- RJ11 (6P4C)
- RJ12 (6P6C)
- RJ22 (4P4C)
- RJ45 (8P8C)
Cable Cutting & Stripping
- Flat Telephone
- Round Cable up to 7mm
H02-21010
Connector Types
- RJ22 (4P4C)
H02-21011
Connector Types
- RJ11 (6P4C)
- RJ12 (6P6C)
H02-21012
Connector Types
- RJ45 (8P8C)

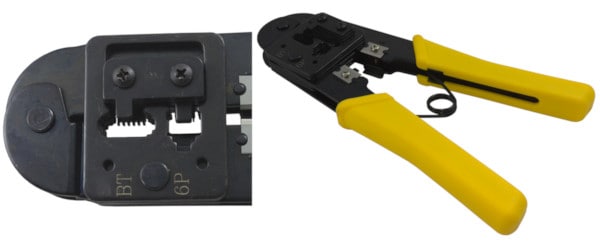

H02-22004
Connector Types
- RJ11 (6P4C)
- RJ12 (6P6C)
- BT431A (6P4C)
- BT631A (6P6C)
Cable Cutting & Stripping
- Flat Telephone
H02-31000
Die Size:
- 18-22 AWG
- 24-30 AWG
H06-30000
H05-01001
H05-01002

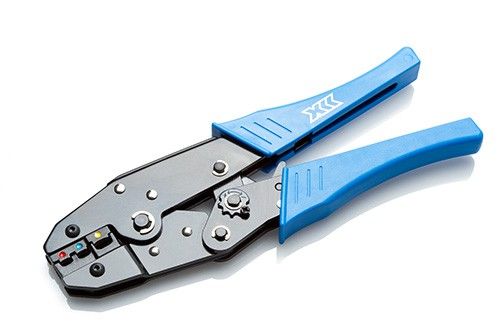

H02-41000
Die Size
- Red Insulation: 0.5-1.5mm² (22-16 AWG)
- Blue Insulation: 1.5-2.5mm² (16-14 AWG)
- Yellow Insulation: 4.0-6.0mm² (12-10 AWG)

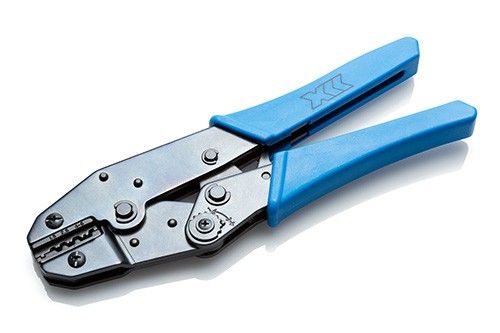

H02-41001
Die Size
- 0.5-1.5mm² (22-16 AWG)
- 1.5-2.5mm² (16-14 AWG)
- 4.0-6.0mm² (12-10 AWG)
H02-41002
Die Size
- 0.14mm²/0.25mm²
- 0.34mm²
- 0.5mm²
- 0.75mm²
- 1.0mm²
- 1.5mm²
- 2.5mm²
